Cantilever Ladders, Extended TOP Platforms

Cantilever Ladders and Extended Overhang Platforms. We can build to your specifications and be OSHA Safety Compliant too. Listed here are suggested sizes with pricing. MADE in the USA.



Cantilever Ladders

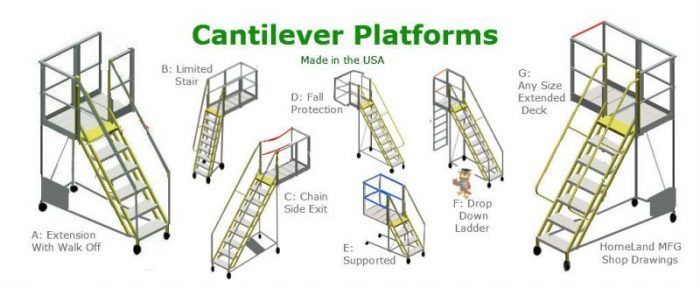

Cantilever Ladder PROs

cantilever ladders side exit

Cantilever Ladders

Cantilever ladder painted yellow

Ladder with drop down extension

cantilever ladder side exit

Side exit Ladder

cantilever Ladder side bridges

Cantilever Rolling Ladder                Drop Down Side Ramps

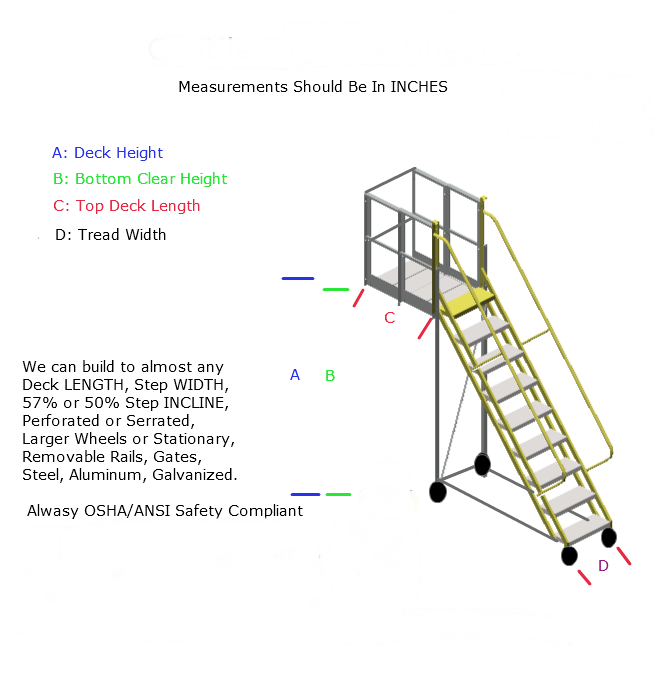

How to Measure a Cantilever Platform


57degree heavy duty 300 load capacity

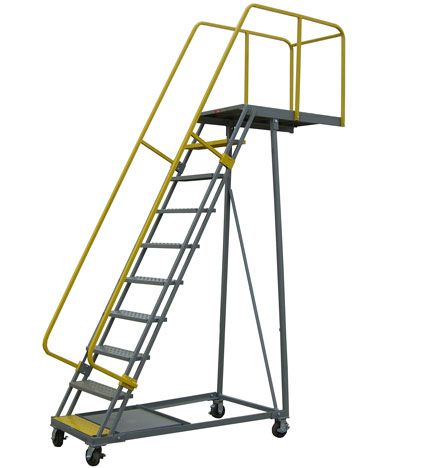

Cantilever Ladder 140" deck height

Cantilever Rolling Ladder

Industrial CANTILEVER  LADDERS  are  used to access storage shelving, inspect cargo, or as a rolling maintenance platform.

The Cantilever Ladders 'unsupported' portion of the platform is perfect for clearing hard to reach areas.  We can install walk off safety chains, make a larger extended reach top platform, galvanize it or make a beefier capacity. Our web site is often copied for content.

Standard Cantilever Ladder Features

  • Individually locking casters
  • 57 Degree is standard slope
  • Overhangs hard to reach areas
  • Several overhang depths to choose from (see chart)
  • Counterbalance weight at base, add 300lb for shipping
  • 300 lbs load rating standard (500lb & more available)
  • 1" square tube construction
  • 30" handrails, 14" standard overhang
  • Gray industrial enamel finish
  • Add $200 for 50 degree slope
  • Made in the USA

Tread Styles Available

Cantilever Ladder aluminum with handrails

Cantilever Ladder, Aluminum, 500lb cap.;



Cantilever Ladder perforated tread design Cantilever Ladder serrated tread design

Many sizes and styles to choose from or we can build a Cantilever Ladder to your concept or drawing.

 >********************************************************************************************************************************************************************************************
Un supported Item # Steps Platform "Height" Platform "W x D" Overhang Base "W x D"



Weight



Perforated Serrated
BS6SH30-SP 6 60" 24" x 21" 14" 26" x 75"90 lbs $1680 $1780
BS7SH30-SP 7 70" 24" X 21" 14" 26" X 82" 100 lbs $1780 $1885
BS8SH30-SP8 80" 24" x 21" 14" 32" x 61" 110 lbs $1900 $2025
BS9SH30-SP 9 90" 24" x 21" 14" 32" x 67" 120 lbs $2000 $2125
BS10SH30-SP 10 100" 24" X 21" 14"32" x 74" 130 lbs $2200 $2325
BS11SH30-SP 11 110"24" x 21" 14" 32" x 83" 140 lbs $2425 $2580
BS12SH30-SP 12 120"24" x 21" 14"32" x 89" 150 lbs $2685 $2815
BS13SH30-SP13 130"24" x 21"14"32" x 95" 160 lbs $2950 $3100
BS14SH30-SP 14 140"24" x 21" 14"32" x 102" 170 lbs $3385 $3525
BS15SH30-SP15150"24" x 21"14"32" x 110" 180 lbs $3585 $3700
BS16SH30-SP 16160"24" x 21" 14"32" x 117" 190 lbs $3800 $3925

OPTIONAL EXTENDED TOP PLATFORM OVERHANGS (past support frame);
  • DTS-21 $400
  • DTS-28 $450
  • DTS-35 $575
  • DTS-42 $650
  • DTS-49 $725
  • Add $600 to any Cantilever Ladder for 500lb capacity
  • Includes Appropriate Counter Balance Required
  • SC-Walk Off Top Safety Chain (no steel handrail) per side: $150

STANDARD HANDRAILS: 30" for ladders up to 110" Platform ht, 42"/21" 120" and taller.

Prices Last updated 03/24/20

**********************************************************************************************************#

Cantilever rolling ladder unsupported and supported frame

Choose Supported or Unsupported Frame

Cantilever rolling ladder supported or unsupported frame

 Basic Designs











Cantilever Ladders that are 'Supported' Cantilevers are built with a support frame.

The support frame allows the TOP Cantilever Portion to Clear Obstacles. A Supported Cantilever Ladder is useful in inventory stocking, maintenance, reaching over obstacles, cargo inspection and is very Economical too. Our Un-Supported Cantilever Stairways have a Powder Coat Finish if requested. Ladders ship KD and need assembly.

Standard Cantilever Features

  • 50 degree slope is standard
  • 24" wide steps and 10" rise
  • 20", 30" 40" deep top platform
  • 4" Top Safety Kick Plates
  • 300 lbs load rating
  • 1" square tube construction
  • 42" handrail with a 21" midrail
  • Yellow industrial Powder Coat Finish

    SUPPORTED CANTILEVER LADDERS Fast Lead Time

Cantilever Ladder Supported all steel painted yellow

Cantilever Ladder Supported





perforated treadserrated tread Tread Styles Available


***************%



Item # Steps

Platform

"Height"

Platform "W x D" Overhang
Base "W x D"
Weight

Perforated

Serrated
SC-520550"24" x 20"20"30" x 64"90 lbs $1150 $1200
SC-530550"24" X 30"30"30" X 74"100 lbs $1200 $1300
SC-540550"24" x 40"40"30" x 84"110 lbs $1250 $1325
SC-620660"24" x20"20"30" x 72"120 lbs $1250 $1375
SC-630660"24" X30"30"30" x 82"130 lbs $1300 $1400
SC-640660"24" x 40"40"30" x 92"140 lbs $1350 $1425
SC-720770"24" x 20"20"30" x 81"150 lbs $1400 $1425
SC-730770"24" x 30"30"30" x 91"160 lbs $1424 $1450
SC-740770"24" x 40"40"30" x 101"170 lbs $1450 $1475
SC-820880"24" x 20"20"30" x 89"120 lbs $1425 $1500
SC-830880"24" X 30"30"30" x 99"130 lbs $1450 $1525
SC-840880"24" x 40"40"30" x 109"140 lbs $1500 $1550
SC-920990"24" x 20"20"30" x 97"150 lbs $1550 $1575
SC-930990"24" x 30"30"30" x 107"160 lbs $1625 $1600
SC-940990"24" x 40"40"30" x 117"170 lbs $1675 $1699

Wholesale Prices as of 9/07/2018

**********************************%

Drawing of Supported Cantilever Ladder
Cantilever ladder Supported Drawing of measurements

Cantilever Ladders that are ‘UN-Supported’ are built without a leg support frame.


UNSUPPORTED CANTILEVERS, Fast Lead Time

######################&






Cantilever Ladders that are ‘UN-Supported’ are built without a leg support frame.

Cantilever Ladder UN Supported painted yellow

Cantilever Ladder UN Supported


UNSUPPORTED CANTILEVERS, Fast Lead Time

###############&

Item # Steps Platform "Height" Platform "W x D" Overhang Base "W x D" Weight + Counter Perforated Serrated
UC-520550"24" x 20"20"30" x 64"90 lbs $1800 $1850
UC-530550"24" X 30"30"30" X 74"100 lbs $2400 $2575
UC-540550"24" x 40"40"30" x 84"110 lbs $2550 $2625
UC-620660"24" x20"20"30" x 72"120 lbs $1850 $2000
UC-630660"24" X30"30"30" x 82"130 lbs $1950 $2150
UC-640660"24" x 40"40"30" x 92"140 lbs $2450 $2475
UC-720770"24" x 20"20"30" x 81"150 lbs $1900 $2100
UC-730770"24" x 30"30"30" x 91"160 lbs $2100 $2200
UC-740770"24" x 40"40"30" x 101"170 lbs $2400 $2450
UC-820880"24" x 20"20"30" x 89"120 lbs $1800 $1850
UC-830880"24" X 30"30"30" x 99"130 lbs $1950 $2000
UC-840880"24" x 40"40"30" x 109"140 lbs $2250 $2300
UC-920990"24" x 20"20"30" x 97"150 lbs $1825 $1900
UC-930990"24" x 30"30"30" x 107"160 lbs $2125 $2200
UC-940990"24" x 40"40"30" x 117"170 lbs $2250 $2475
Wholesale Prices as of 9/11/2018
##############&
Cantilever ladder Unsupported drawing measurements


***********************************************#

We Build Side Exit Cantilevers.

Cantilever Side Exit Platforms with 'side' extensions are available. These work platforms can be built with a walk off top.

cantilever ladders side exit

Cantilever Ladders side exit and front extension













###################################

Click HERE to View Other Ladders

Tank Top Lifts

Non-Adjustable $5900

Adjustable $7200

Tank Top Lifts, by Ballymore, are great for all kinds of maintenance applications. These CANTILEVER TANK TOP LIFTS provide easy access to tank trucks, railroad cars or other cantilevered applications. Great for clearing snow and ice off tops of trailers. For safety purposes the step and deck tread is open serrated grating, while slip resistant rungs provide access when platform is raised. Economical & OSHA Safety Certified. Call a CANTILEVER PLATFORM Pro!

Features:

•300 lbs. load capacity•48” long cantilevered platform
•Available with a fixed platform height•Recommended Option: 30” extension railing
•Hydraulic hand pump raises/lowers platform •Manually propelled for use on hard level surfaces
•Base is 28” W x 60” L, fixed outriggers spread 69”•Two adjustable stabilizing jacks secure lift to ground
•Full rails on both sides w/gates at each end•Two swivel/two rigid 8” casters

Standard finish is a deep gray enamel paint, however, a powder coat safety orange is also available. These lifts can be modified to suit your needs.

Tank Top Lifts

Model #Platform
(inches)
PlatformUnderclearance
Height
Weight
( Lbs )
Price
MinMaxLW
TT-9139'4"13'4"48"24"Adjustable 9'4" - 13'8"1,525 $7,200
TT-913F9'4"13'8"48"24"Non-Adjustable 9’ to 13’1,450 $5,900

OPTIONS & ACCESSORIES

AC electric power$2,600
DC electric power $1,650
Air-Hydraulic power$2,600
Tool Tray $110
Fluorescent tube holder $194
Platform duplex receptacle $340
Removable 30” extension railing $360
Safety orange enamel paint finish FREE

Three available power options:
-Air hydraulic power requiring 90 CFM with 90 PSI pressure
-Convenient plug in 120V AC with thermal overload protection
-Independent 12V DC deep cycle system complete with battery and charger along with a double solenoid for additional safety

Caution:
Unless special provisions are made, platforms and lifts must not be used for energized bare wire electrical work or operated on inclined surfaces. When this equipment is used, ground personnel should be excluded from the immediate work area. Compliance with unspecified codes should not be assumed.

Cantilever Ladder adjustable deck painted orange

Adjustable Cantilever Ladders

























Adjustable Height Cantilever Rolling Platform

9 Step 50" to 90" Range AH5090 $5500

12 Step 80" to 120" Range AH80120 $5700

Hydraulic or Shop Air, Same Price

  • Steps articulate as height adjusts
  • 50"-90" and 80"-120" range models
  • Powered and manual models
  • 500 lb. rated capacity
  • Diamond plate platform surface
  • Serrated 11 3/4" deep steps
  • 42" guardrails
  • Exit chains on top platform
  • 8"x2" Locking casters
  • Hybrid aluminum and steel construction
  • Meets OSHA 1910.29 & ANSI A14.7



Please consult this diagram for a clear depiction of how we measure and describe our ladders and platforms.

  • A = Step Height or Platform Height (generally measured 10" per step) Custom Work Platforms Seen In HOME IMPROVEMENT STORES
  • B = Step/Platform Width
  • C = Platform Depth
  • D = Overall Depth (found at base)
  • E = Overall Width (found at base)







All of our products ship using the industry standards for ladders and work platforms. After a thorough Quality Check is performed on each product, they are either palatalized or crated. Shrink wrapping and padding adds an extra layer of protection. Always inspect your shipment upon delivery.

Mobile-Work-platforms







cantilever ladder fall safe deck extension

Cantilever ladder with fall save deck extension

Cantilever Ladder adjustable height

Adjustable Cantilever Ladder













Cantilever Ladder supported powder coat paint

Cantilever Ladder supported





















Cantilever Ladder extended deck painted white

Leveling Cantilever Ladder

Aluminum cantilever ladders with 500lb capacity

Aluminum Cantilever Ladder

+

+

*

*

trucks or trains work platforms

Cantilever ladder for extending over trucks or trains

Cantilever Ladder with OSHA approved walk off deck

Rolling Ladder OSHA Safety Compliant









aircraft cantilever ladders airplane wing access











aluminum cantilever ladder with safety cage

Heavy duty aluminum cantilever ladder for tank top access













cantilever ladders women owned small business
